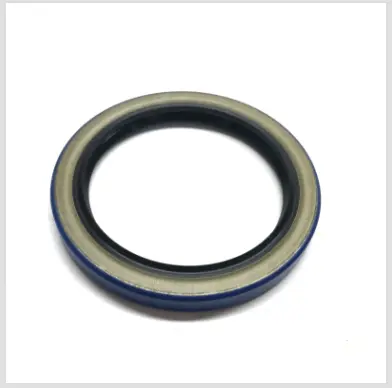

Oil Seal
ABC3201
This is a reproduction part
2.875" I.D.
3.756" O.D.
.438" Wide
Fits Model(s):
Case, used as a R/H reduction gear carrier transmission brake seal: 900 & 930 (both 6 speed Westerns only).
International, used as a bull pinionn shaft bearing retainer oil seal on all tractors with band brakes: M (both up to SN: 294225), MD (both up to SN:285504), MDV (both up to SN:285504), MV (both up to SN:294225), O6, ODS6, OS6, W6, W9, WD6, WD9, WDR9, WR96.
John Deere, used as a 540 dual PTO shaft: 830 3 Cylinder, 1030, 1120, 1520, 1630, 2010, 2020, 2030, 2040, 2120, 2130, 2440, 2510, 2520, 2630, 2640, 2840, 3020 (SN: 123000 & up), 4000, 4020 (both SN: 201000 & up), 4030, 4040, 4050, 4055, 4230, 4250, 4255, 4240, 4320, 4430, 4440, 4450, 4455.
John Deere: 1020 (used as a 540 PTO shaft oil seal).
Minneapolis Moline used as a bull pinion shaft bearing retainer oil seal: G1355, G955.
Oliver used as a bull pinion shaft bearing retainer oil seal: 1550, 1555, 1600, 1655, 1750, 1755, 1800, 1850, 1855, 1870, 1900, 1950, 1950T, 1955, 2050, 2150, 2255, 2270.
White: 1870.
Replaces Part Number(s):
Case: A26759, O3873AB.
International: 357969R91, 357975R91, 45073D, 610870C91, 610870C92, 7063407.
John Deere: AT16431, AT167936, RE13181.
Minneapolis Moline: 107620A, 107621A, 155627A, 160367A, 30-3302466, 608908A.
Oliver: 107620A, 107621A, 155627A, 160367A, 30-3302466, 608908A.
White: 107620A, 107621A, 155627A, 160367A, 30-3302466, 608908A.
