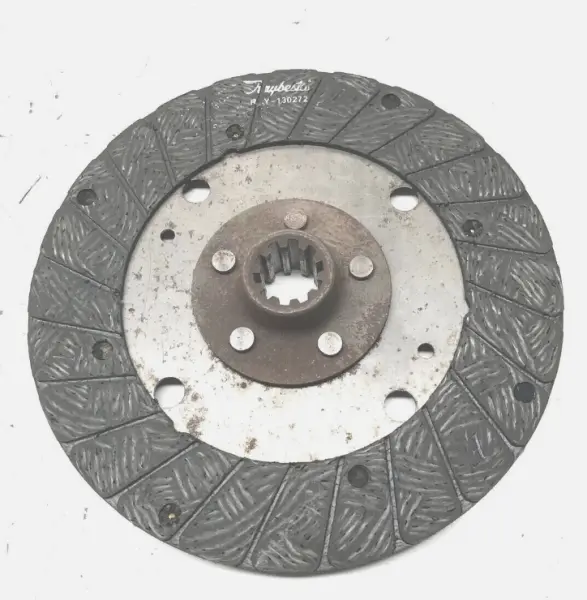

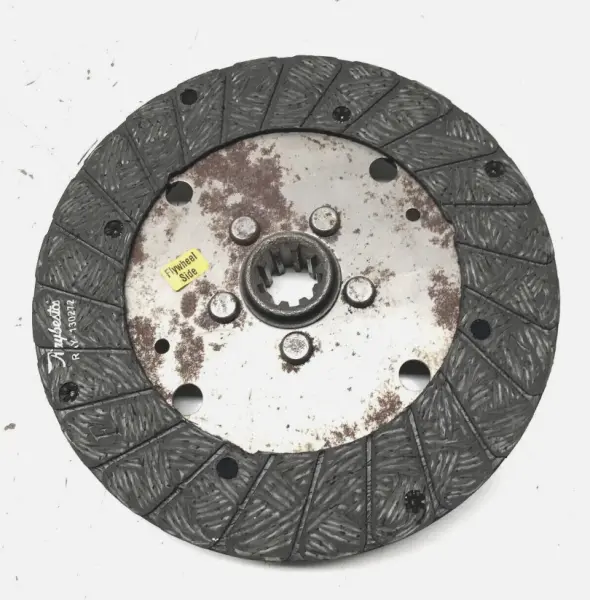

Clutch Disc
ABC3502
This is a reproduction part
9" Outside diameter
Fits 1-1/8" outside diameter shaft w/ 10 splines
1-1/2" lining width
.346" thickness
Please measure before ordering.
Fits Model(s):
Allis Chalmers some early models using 9" diameter clutch: B, IB, C, CA, D10 (up to SN: 3501), D12 (up to SN: 3001), D14, D15, H3, I500, I600.
Case: VA, VAC, V, VAC-11, VAC-12, VAC-13, VAC-14, VAH, VAIW, VAIW-3, VAO, VAO-15, VAS, VC, VO.
Cockshutt: E3 & 30.
Massey Ferguson some when using 1-1/8" center hub instead of 1-3/8" center hub: TE20, TEA20, TO20, TO30, TO35 (All with single clutch), 35 (All with single clutch), 135 (All with single clutch).
Massey Ferguson: 20, 20K, Colt (21), Mustang (23), 22, 30, 50 (All with single clutch)(some wihen using 1-1/8" center hub instead of 1-3/8" center hub), 81, 82, 101 Jr, 102 Jr.
Minneapolis Moline: BF, BG.
Oliver: 70.
Replaces Part Number(s):
Allis Chalmers: 207784, 70207784.
Avery: 135550.
Case: A30291, A44512, VTA12, VTA1650, VTA1651, VTA668, VTA909, VTA910.
Cockshutt: TO5070B.
Massey Ferguson: 180241M91, 180250M91, 181114M91, 193621M91, 825495M91.
Massey Harris: 6216A, 760260M91 (Serviceable).
Oliver: 112194, BS556.
