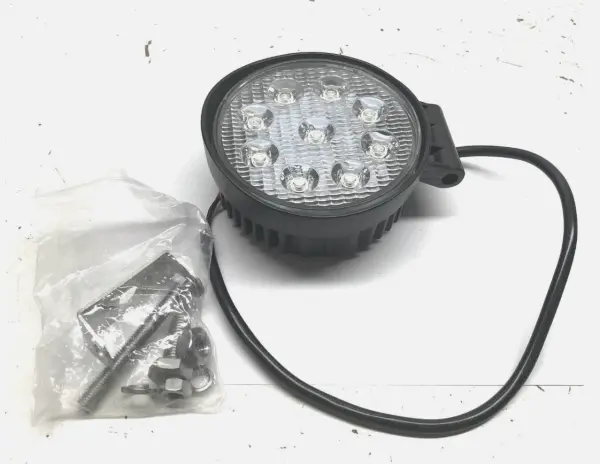

Universal 12-Volt LED Flood Light

ABC3514

This is a reproduction part
4.520" housing OD
2.145" depth
LED Type: 9 Bridgelux, 3 Watt LED
 27 Watts total
 9-32 Volt operating range
Amp Draw: 2.25A @ 12V, 1.125A @ 24V
POLARITY SENSITIVE
Theoretical Lumens: 2160
Operating Lumens: 1728
Color Temperature: 6000K

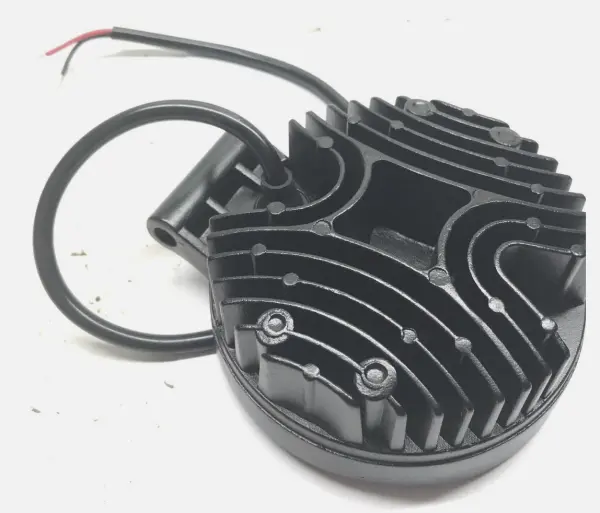

Black painted heavy duty die cast aluminum housing with integral heat sink
Scratch Resistant Polycarbonate lens
Bracket: Simple 1 bolt 304 stainless steel adjustable mount, also includes 1 bolt 201 steel mount and a M8-1.25 mounting bolt and nut for 0.335" OD hole
IP67 Waterproof and Shock Proof Rated
(2) 16" Insulated Wires in a Waterproof Loom to Attach Terminals
60 Degree Flood Beam Pattern
Operating Temperature is -40 to 140 Degrees Fahrenheit
Rated at 50000 Hours Lifetime

52.3
Price: $52.30

Quantity:
Add to CartAdd to Estimate
  • ABC3514
  • ABC3514.2
Click to Enlarge
Fits Model(s):
Many Models:
Allis Chalmers, Case, Cockshutt, Ford, International, Massey Ferguson, Massey Harris, Minneapolis Moline & Oliver.
John Deere, Serviceable as a LED worklamp: 4050, 4250, 4450, 4650, 4850.

Replaces Part Number(s);
John Deere:
RE574376.
