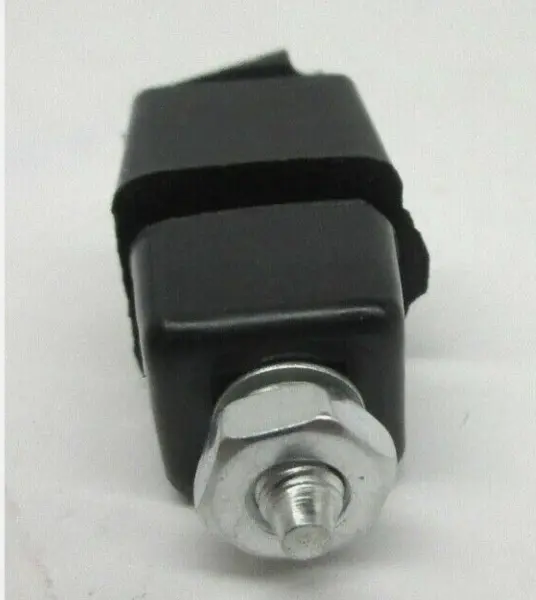

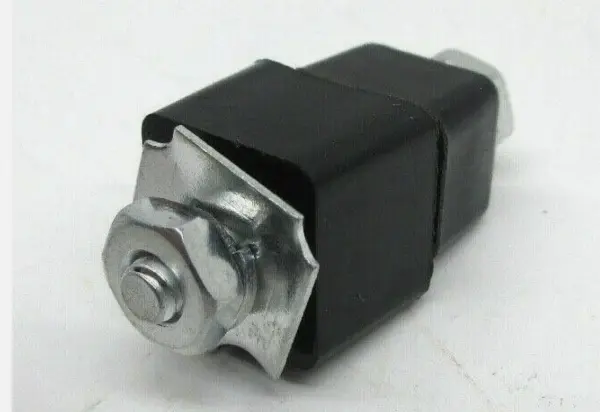

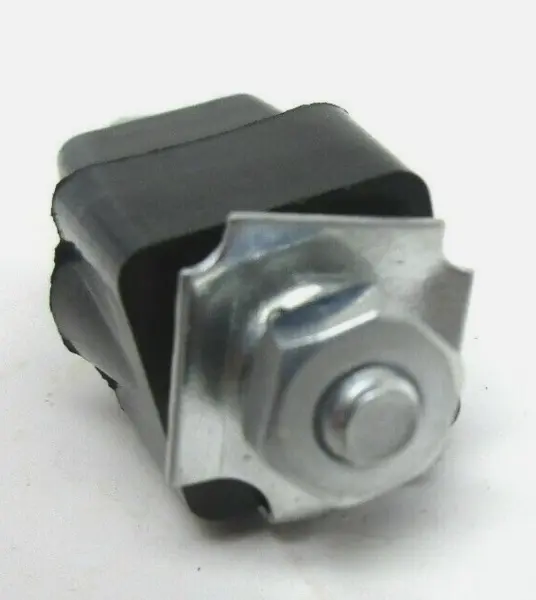

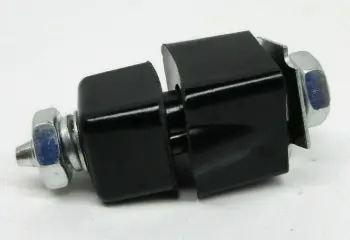

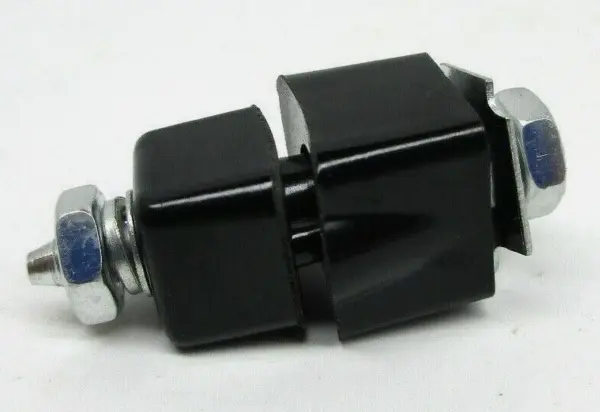

Delco Distributor Terminal Insulator

ABC500

This is a reproduction part
Square was the late style that fit disturbutor housings with .300" diameter hole with a keyway.
Double check which style you need, if not sure, measure before ordering.
For Delco distributors only, this will not fit IH built distributors and magnetos.

15.7

Price: $15.70

Quantity:

Add to Cart Add to Estimate

Click to Enlarge

Fits Model(s):
Allis Chalmers with Delco distributor: D10, D12, D14, D17, D19, WD45.
Allis Chalmers EARLY with Delco 1112607, 1112609 distributor & clip held cap: D15, H3, I400, 1600.
Allis Chalmers, some using Delco 1111411 vertical distributor with square insulating terminal: B, IB, C, CA, RC, WC, WD, WF.
Case with Delco distributor numbers 1111908, 1111909: 400B, 200B, 210B, 211B, 300B, 310B, 311B, 312B, 410B, 411B, 420B, 500B, 510B, 511B, 600B, 610B, 611B, 614B.
Case, some using Delco 1111411 vertical distributor with square insulating terminal: S, SC, D, DC, DC-3, DC-4, DCS, DH, DI, DO, DV, SC-3, SC-4, SI, SO.
Cockshutt with Delco distributor: 550 (Cockshutt), 550 (Oliver built Cockshutt tractor), 570 (Cockshutt).
International, some using Delco 1111411 vertical distributor with square insulating terminal: A, I4, AV, Super A, Super A-1, Super AV, Super AV-1, B, BN, C, Super C, H, HV, Super H, Super HV, M, Super M, MV, Super MV, O4, O6, OS4, OS6, T6, Super W4, W4, Super W6, W6.
John Deere Some, using Delco distributor: A, B, 50, 520, 530, 60, 620, 630, 70, 720, 730, AO, AR, D, G, 420, 430, 1010, 2010, 3010, 4010.
Massey Ferguson: TO30 (Ferguson Tractor), TO35 (Ferguson Tractor), F40 (Ferguson Tractor), 35, 50, 65, 85, 88, Super 90, 97.
Massey Harris: 50
Oliver: Super 77, Super 88, 660, 770, 880, Super 99, Super 55, Super 66, 550, 950, 1800 (Some using Delco distributor number 1112603), 1900 (Some using Delco distributor number 1112603).

Replaces Part Number(s):
Allis Chalmers: 225791, 225792, 225793, 225794, 225795, 70225791, 70225792, 70225793, 70225794, 70225795.
Avery: 120622, 1914142, 1914144, 1916805, 1916806. 817363.
Case: 120622, 1914142, 1914144, 1916805, 1916806, 817363.
Cockshutt: MA467, MA624, MA625, MA626, MA627, MA628, MA629.
Delco: 1904376.
International: 120622, 1914142, 1914144, 1916805, 1916806, 817363.
John Deere: 12H290R, 1909206, 1914142, 1916805, 1916806, 817363.
Massey Ferguson: 1750513M1, 1750514M1, 1750520M1, 22303X, 353444XL, 354119X.
Oliver: 1H7431, 1H7437, 1K7430, 1K7433, 1K7434A, 1K7445, 7A7820.
White: 1H7431, 1H7437, 1K7430, 1K7433, 1K7434A, 1K7445, 7A7820.
