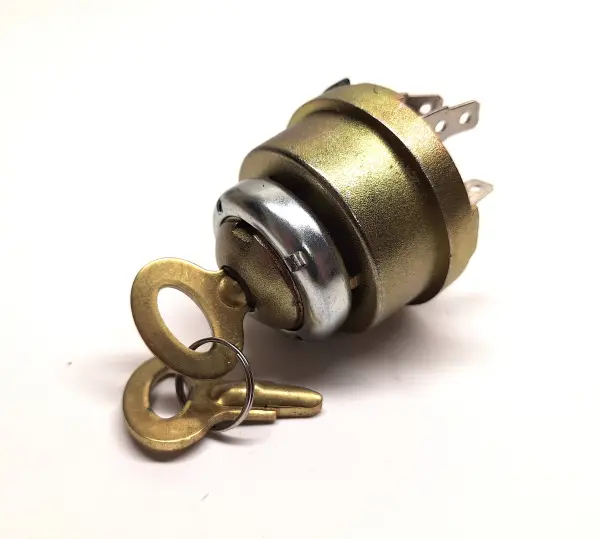

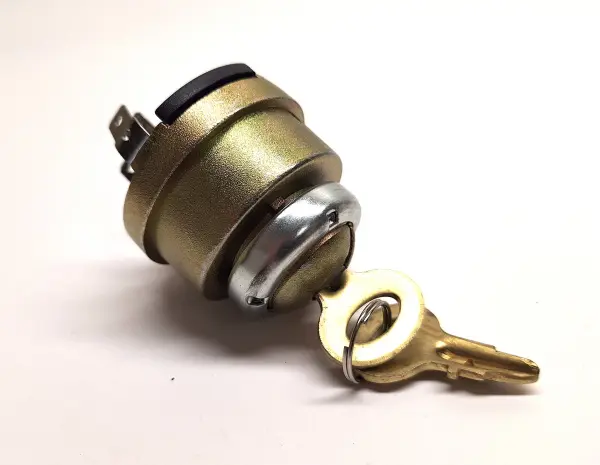

Ignition Switch / Key Switch ACS288

ACS288

  • Ignition Switch / Key Switch ACS288
  • ACS288-2 REPRO
  • ACS288-3 REPRO
Click to Enlarge

This is a reproduction part

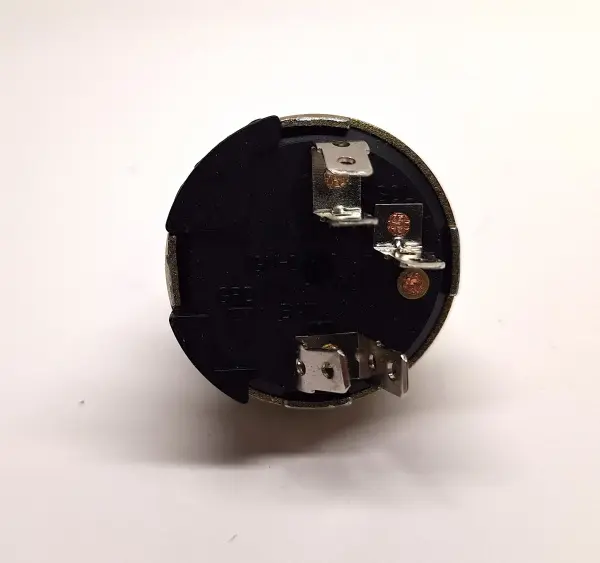

5 Spade Terminals
.995" Diameter Threaded End
4 Position Switch
Includes Stainless Steel Jam Nut and Two Keys

40.35
Price: $40.35

Quantity:
Add to CartAdd to Estimate
  • Ignition Switch / Key Switch ACS288
  • ACS288-2 REPRO
  • ACS288-3 REPRO
Click to Enlarge
Allis Chalmers (it will also fit the later serial numbers, but you must use 70227195 washer fo switch will fit the dash): D10 (up to SN: 3500), D12 (up to SN: 3000).
Allis Chalmers: D10 (up to SN: 3500), D12 (up to SN: 3000),  D14 (SN: 9500 & up), D15 (up to SN: 9000, Using Delco Switch), D17 (up to SN: 75000), D19, D21, H3 (Early, Using Delco Switch).
Case: 700 & 900.
Cockshutt: 540, 550, 560, 570.
Minneapolis Moline: G1355, G550, G750, G850, G955.
Oliver: Super 77, Super 88, 660, 770, 880, Super 55 (SN: 46001 & up), Super 66, 550, 950, 1550, 1555, 1600, 1650, 1655, 1750, 1755, 1800, 1850, 1855, 1870, 1900, 1950, 1955, 2150, 2255, 2270.

Replaces Part Number(s):
AGCO:
70235785.
Allis Chalmers: 229201, 230163, 231705, 233320, 234356, 235785, 70230163, 70231705, 70233320, 70234356, 70235785, 7029201, 72163174, 72163174V.
Case: A11373, D75657, L17820.
Cockshutt: T18021B.
Cole Hersee: 95515A-BX, 956-4106, 956-4306.
Minneapolis Moline: 20-7101027.
Oliver: 100423ASA, 105232AS, K7354B.
White: 20-7101027, 611064AS, 721146A.
