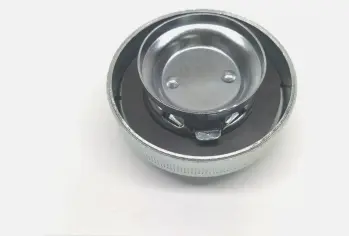

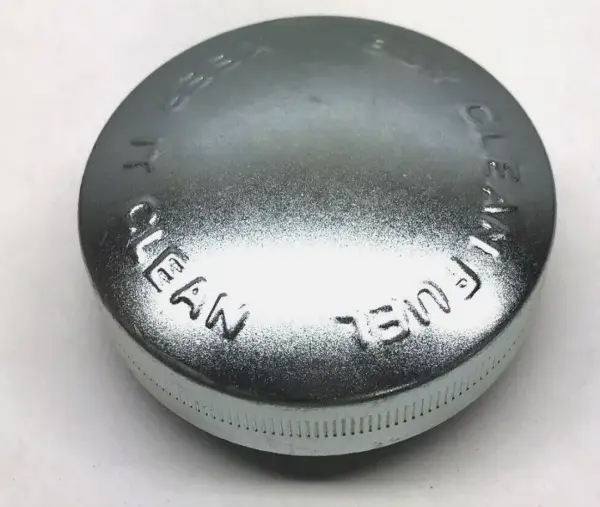

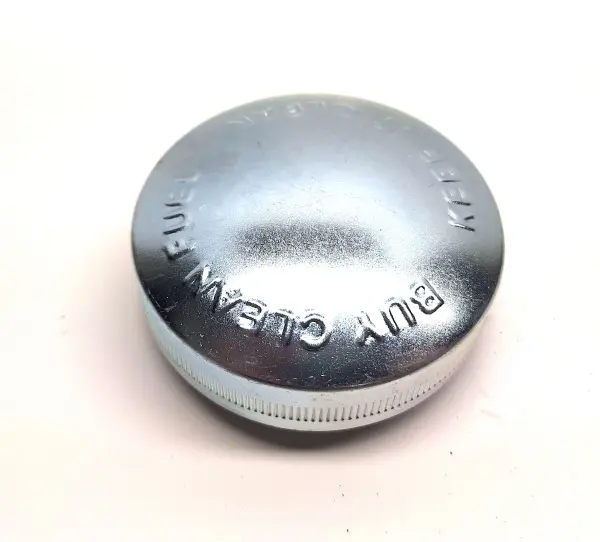

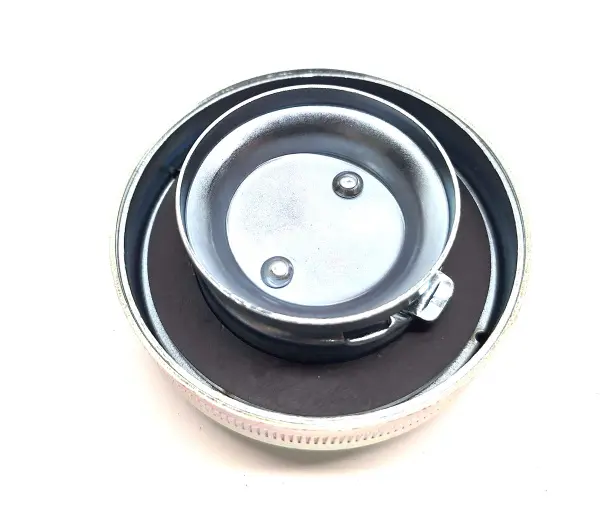

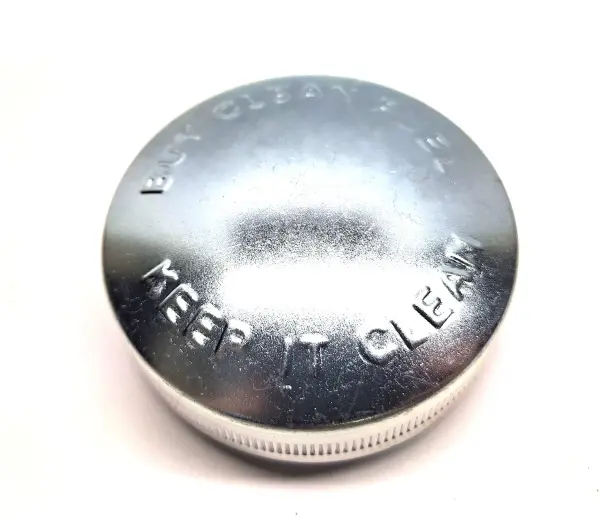

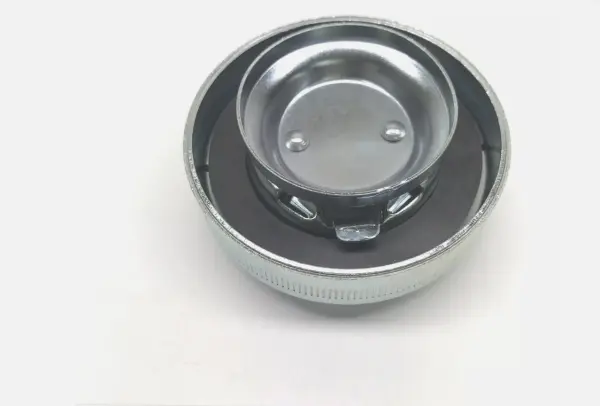

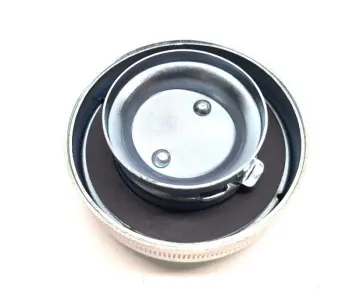

Side Vented Fuel Cap IHS226
IHS226
This is a reproduction part
2.725" I.D.
2.886" O.D.
.625" Height
1.825" Inside Center Diameter
2.103" Tang to Tang Length
.398" Tang Width
Fits Model(s):
Allis Chalmers: A, B (up to SN: 101; using buy clean fuel cap), D17 (EARLY using buy clean fuel cap), U, UC, WC (Unstyled SN: 2045 to 74330), WF (Unstyled to SN: 1904).
International: A, I4, AV, Super A, Super A-1, Super AV, Super AV-1, B, BN, C, Super C, Cub, Cub Loboy (Does not fit 154, 184 or 185), H, HV, Super H, Super HV, I9, ID9, M, MD, Super M, Super MD, Super MDTA, Super MDV, MDV, Super MDV-TA, MTA, Super MTA, MV, Super MV, Super MVTA, O12, O14, O4, O6, ODS6, OS4, OS6, T5, TD6 (fits only as a starting tank cap), W30, Super W4, W4, Super W6, W6, W6TA (Gas & Diesel), W9, WD6, Super WD9, Super WDR9, WD9, WDR9, WR9, WR9S, 10-20, 15-30, F12, F14, F20, F30, Regular, 100, 130, 200, 230, 300, 350, 400, W400, 450, W450, 600, 650.
John Deere: A, B, 50 (up to SN: 5018449), 60 (up to SN: 6035349), 70 (up to SN: 7012349), 80, 820 2 Cylinder, 830 2 Cylinder, AI, AO, AR, BO, BR, D, G, H, R.
Massey Harris: 20, Colt (21), Challenger, Mustang (23), 22, 30, 33, 44, 44 Special, 44-6, 81, 82, 101 Jr, 101 Sr, 102 Jr, 102 Sr, 201, 202, 203, 333 (Serviceable), 444 (Serviceable), 555 (Serviceable).
Minneapolis Moline (Using Fender Fuel Tanks): G1050, G1350, G1355, G950, G955.
Oliver: 60, 66, 70, 77, Super 77, 88, Super 88, 660, 770, 880, 80, 90, 99, Super 99, super 55 (SN: 46001 & up), Super 66, 550, 900 (Industrial), 950, 990, 995, 1550, 1555, 1600, 1650, 1655, 1750, 1755, 1800, 1850, 1855, 1865 (Using Fender Fuel Tanks), 1900, 1950, 1955, 2050, 2055, 2150, 2155, 2255.
Replaces Part Number(s):
Allis Chalmers: 206622, 70206622, 70228498.
Cockshutt: 161945A, B824.
International: 23995DA, 65024D.
John Deere: AD709R, AH83351, AH93182, AR369R.
Massey Harris: 761337M1, 761337M91, 765927M1.
Minneapolis Moline: 30-3049558.
White: 161945A, 30-3049558, 7A824, B824.
