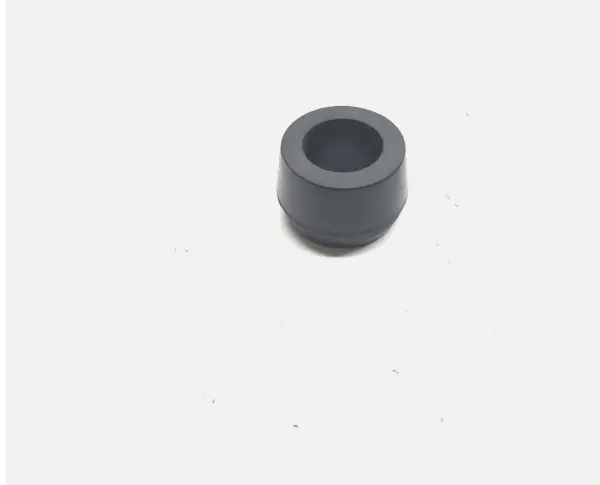

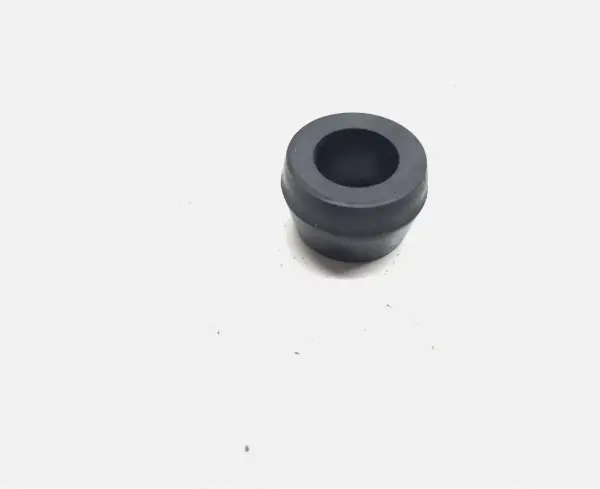

Seat Shock Bushing IHS325

IHS325

  • Seat Shock Bushing IHS325
  • IHS325.2
Click to Enlarge

This is a reproduction part
1.223" O.D. at the largest point
.597" Hole I.D.
.724" Overall Length
Fot the Horizontal Bolt Hole

3.5
Price: $3.50

Quantity:
Add to CartAdd to Estimate
  • Seat Shock Bushing IHS325
  • IHS325.2
Click to Enlarge

Fits Model(s):
Allis Chalmers:
B, C, CA, D10, D12, D14, D15, D17, D19, D21, RC, U, WC, WD, WD45 WF, 170, 175, 180, 185, 190, 190XT, 200, 210, 220, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, 7580.
Case (when equipped with a Monroe Seat): S, SC, C, CC, CI, D, DC, DC-3, DC-4, DCS, DH, DI, DO, DV, SC-3, SC-4, SI, SO.
Cockshutt: 550 (with optional Monroe Seat), 560, 570.
Ford (1939-1954 with optional Monroe Seat): 9N, 2N, 8N, Jubilee, NAA.
International: C, Super C, H, HV, Super H, Super HV, M, MD, Super M, Super MD, Super MDV, MDV, MTA, MV, Super MV, F20 (Late with Monroe Easy-Ride seat), F30 (with Monroe Easy-Ride seat), 200, 230, 300 (Farmall Rowcrop), 350 (Farmall Rowcrop), 400 (Farmall Rowcrop), 450, 460, 560, 600, 650, 660.
John Deere (when equipped with the optional Monroe seat): A, B, G, L, LA.
John Deere (with Float Ride Seat): 50, 520, 530, 620, 630, 720, 730, 80, 820 2 Cylinder, 830 2 Cylinder.
John Deere: 1020, 1030, 1520, 2020, 2030, 2130, 2350, 2440, 3130, 2035, 2140 (SN: 430000 & up), 2135, 3040 (SN: 430000 & up), 3140 (SN: 430000 & up), 3135, 2510, 2520, 2550, 2630, 2750, 2940, 2950, 3010, 3020, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4250, 4255, 4240, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520, 8430, 8630.
Massey Harris: Challenger (when equipped with an optional Monroe Easy Ride Seat), Mustang (23), 22, 30, 33, 44, 333, 444, 555.
Minneapolis Moline (when equipped with an optional Monroe Easy Ride Seat): BF, BG, BIG, General.
Oliver (when equipped with an optional Monroe Easy Ride Seat): 60, 70, 80, 90.

Replaces Part Number(s):
Allis Chalmers:
222488, 70222488.
Cockshutt: T19118.
Ford: 230288.
International: 250416R1, 72696R1.
John Deere: F3296R, R26832.
Massey Harris: 760674M1.

Also fits:
Graham Bradley & Empire 90 with Monroe Seat
