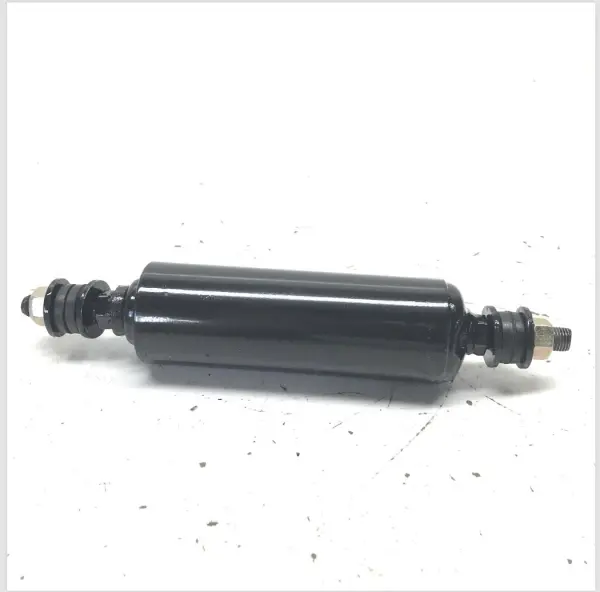

Seat Shock Absorber IHS646
IHS646
This is a reproduction part
7.815" Overall Length when Compressed
10.420" Overall Length Fully Extended
1.505" Barrel Diameter
.490" Rod Diameter
Threaded Ends:
3/8" - 24 UNF
.915" Thread to Shoulder Length
Fits Model(s):
International (with Deluxe Seat): Hydro 100, Hydro 70, Hydro 86, 21456, 460, 504, 544, 560, 656, 660, 666, 686, 706, 756, 766, 806, 826, 856, 966, 1026, 1066, 1206, 1256, 1456, 1466, 1468, 1566, 1568, 4100, 4156, 4166, 4186.
Replaces Part Number(s):
International: 372751R91.
