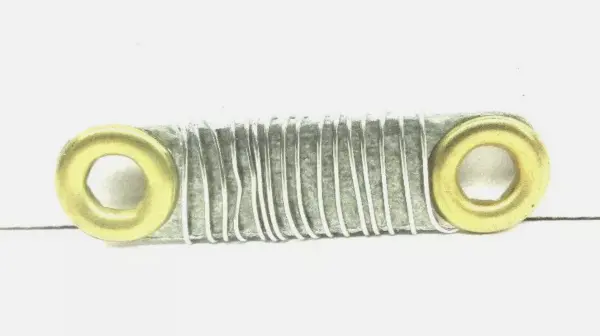

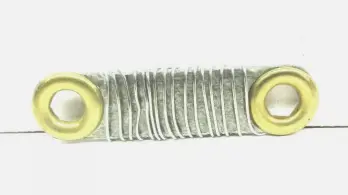

Field Resistor IHS950
IHS950
This is a reproduction part
For models with a cut out relay on the generator
NOT used on tractors with voltage regulators
Fits Model(s):
Allis Chalmers using the original switch (208197) & cutout system: B, IB, C, CA, G, RC, WC, WD, WD45 (Gas models up to SN: 201241), WF.
Case (for switch number VTA463 on models up to SN: 5060679): VA, VAC, VAH, VAO.
International with cutout relay: A (up to SN: 345198), I4 (up to SN: 36785), AV (up to SN: 345198), Super A (up to SN: 345198), Super A-1 (up to SN: 345198), B, BN, C (up to SN: 47125), Cub (up to SN: 115402; Farmall), Cub (up to SN: 16397; WILL NOT FIT 154, 184, 185), H (up to SN: 350953), HV (up to SN: 350953), I9, ID9, M (up to SN: 229910), MV (up to SN: 229910), O4 (up to SN: 29473), O6 (up to SN: 29473), OS4 (up to SN: 29473), OS6 (up to SN: 29473), T6 (with 6 Volt system), TD6 (with 6 Volt system), W4 (up to SN: 29473), W6 (up to SN: 29473), W9 (up to SN: 48740), WD6, WD9.
John Deere: L & LA.
John Deere Using original switch & cutout: M, MC, MT.
John Deere using AB2687R Switch: A (SN: 477000 to 519791), AO (up to SN: 261847), AR (up to SN: 261847), BO (up to SN: 332612), BR (up to SN: 332612), D (SN: 143800 to 153988).
Massey Harris: 20, 20K, 30, 30K, 81, 82, 101 Jr, 101 Sr, 102 Jr, 102 Sr.
Replaces Part Number(s):
Delco: 1878070, 1882994.
International: 47891D.
John Deere: 1838155.
Massey Harris: 1000072M1.
