Single Barrel DLTX Early Carb Hardware Kit JDS907
JDS907
This is a reproduction part

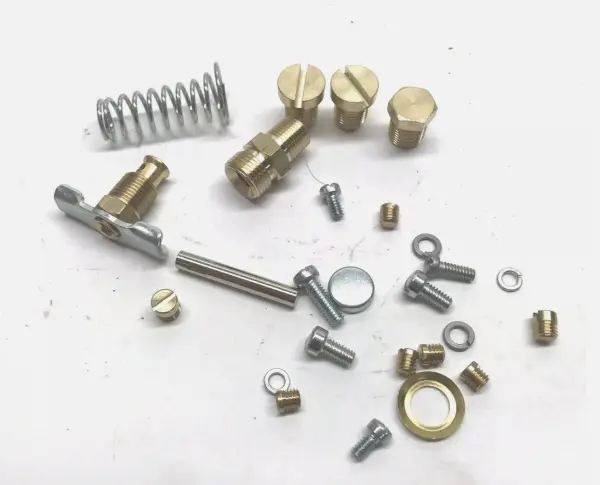

Kit Includes:
(1) A358R - Fuel LIne Connector
(2) R10050R - Float Bearing Screws
(1) AR10075R - Drain Cock
(1) R10049R - Float Lever Pivot Pin
(1) R10078R - Spring
(1) R10160R - Hex Plug
(1) R10151R - Throttle Shaft Hole Plug
(2) 21H962R - Choke Butterfly Screws
(2) A765R - Lock Washer for Choke Butterfly Screws
(1) 21H963R - Clamp Screw
(1) R10036R - Throttle Lever Screw
(1) R10147R - Washer
(4) R10067R - Plug
(1) R10041R - Plug
(1) 15-223 - Plug
(1) R10045R - Plug
(2) 21H964R - Throttle Butterfly Lock Washers
(2) 21H971R - Throttle Butterfly Screws
Does not include Jets & Nozzles
Fits Model(s):
John Deere: A, B, AO, AR, BO, BR, D, G, GP, GPO.
Replaces Part Number(s):
John Deere: 15-223, 21H64R, 21H962R, 21H963R, 21H971R, A258R, A765R, R10036R, R10041R, R10045R, R10049R, R10050R, R10067R, R10078R, R10147R, R10151R, R10160R.
Carburetor Numbers: DLTX10, DLTX11, DLTX13, DLTX15, DLTX16, DLTX17, DLTX18, DLTX19, DLTX24, DLTX3, DLTX31, DLTX33, DLTX34, DLTX38, DLTX39, DLTX41, DLTX5, DLTX51, DLTX53, DLTX6, DLTX63, DLTX7, DLTX8.
